Single Shaft Shredder

Available to recycle wide range of material.As per our customer’s requirements, such as the input size of materials. Capacity and the final output size etc. We could work out a suitable solution.

Single Shaft Shredder Introduction:

Single shaft shredder is available to recycle wide range of material. It is an ideal machine for plastic, paper, wood, fiber, rubber, organic waste a wide variety of non-metallic materials. As per our customer’s requirements, such as the input size of materials. Capacity and the final output size etc. We could work out a suitable proposal for our clients. After being shredder by the machine, the output material could be used directly or go int to the next step of size reduction.

With the function of Siemens microcomputer control system, it is possible to control automatically start, stop. Automatic reverse sensors to protect the machine against over loading and jamming. The output capability typically range between 300kg/hr –5,000kg/hr+ depending on the different model and different materials.

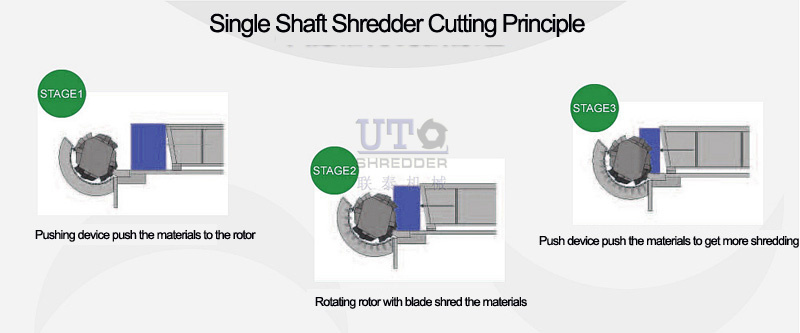

Cutting Principle about the Single Shaft Shredder:

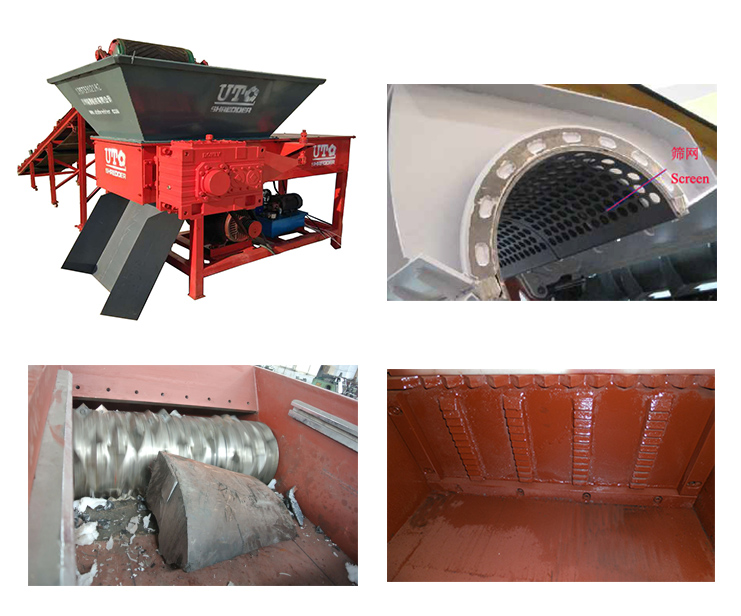

The cutting part of the single shaft shredder including the rotor, rotor blade, counter blade and the screen. The minimum mounting clearances between the rotor blade and counter blade is 0.1mm.

The motor drive the rotor by high speed rotating trough the speed reducer, therefore the rotor blade cutting the counter blade. After one cutting, the materials will be discharged if its size smaller the screen mesh size. Or the material will be double or more cutting, until the size is smaller than the screen holes.


Single Shaft Shredder Advantages:

* Detachable rotor blade, easy disassemble and installation, and simple maintenance.

* Automatic feeder, increase produce efficiency.

* Quick change screen for accurate particle size control.

* Shock absorbing gearbox reduces stress on drive components.

* Integrated rotor, assured the cutter clearance between the rotor blade and the counter blade.

* Enclosed bearing protection design, waterproof and dustproof, extend the bearing work life.

* PLC control system, automatic reverse sensor to protect the machine against over loading and jamming.

* Provide the rotor cooler system against the low melting materials, prevent the materials burning while the temperature higher.

Single Shaft Shredder Applications:

Plastic: Film; Jumbo Bag; PET Bottle; Plastic Barriers; Plastic Pipe; Plastic Boards

Hard Plastic: Plastic Lump (Purgings); Fiber, High Strength Engineering Plastics ( ABS, PC, PPS, etc.)

Wood: Timber; Tree Root; Wood Pallets; Wood Package, etc.

Industrial Solid Waste:Cable; Light Metal, like Aluminum Can, Aluminum Scrap, etc. White Goods, like TV Shell, Washing Machine Shell, Refrigerator Body Shell, Computer Shell, Circuit Board, etc. Solid Waste, like Household Garbage, Medicinal Waste, Industrial Waste

Others: Rubber, Textile, Fiber & Glass Products, etc

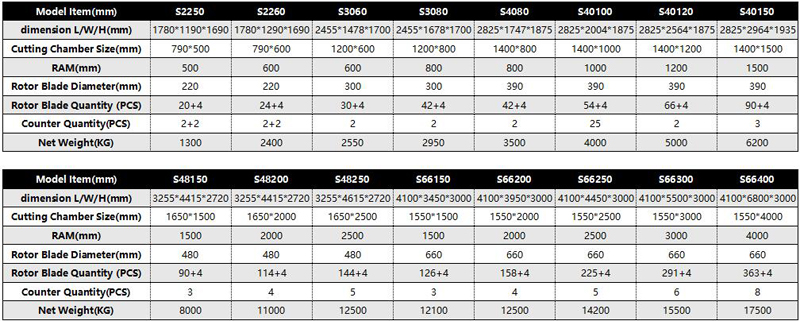

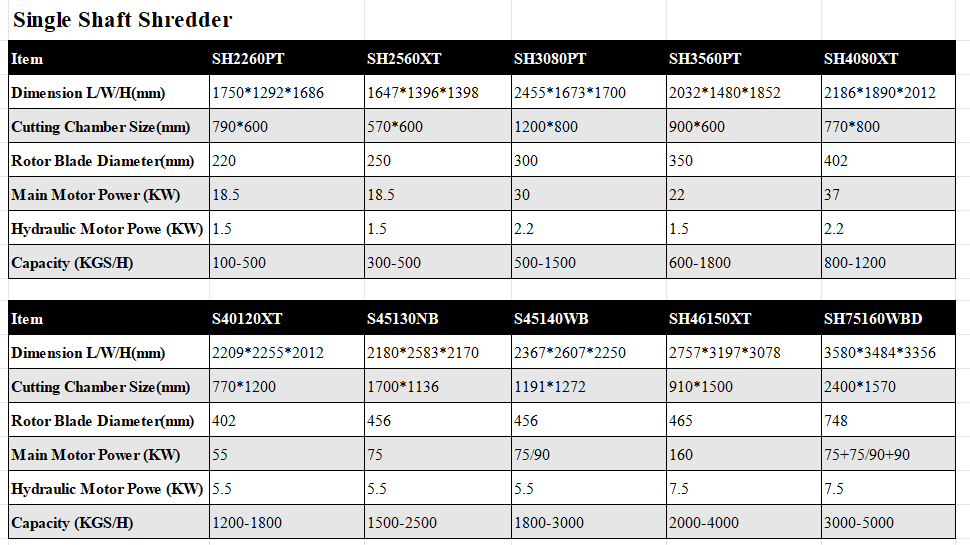

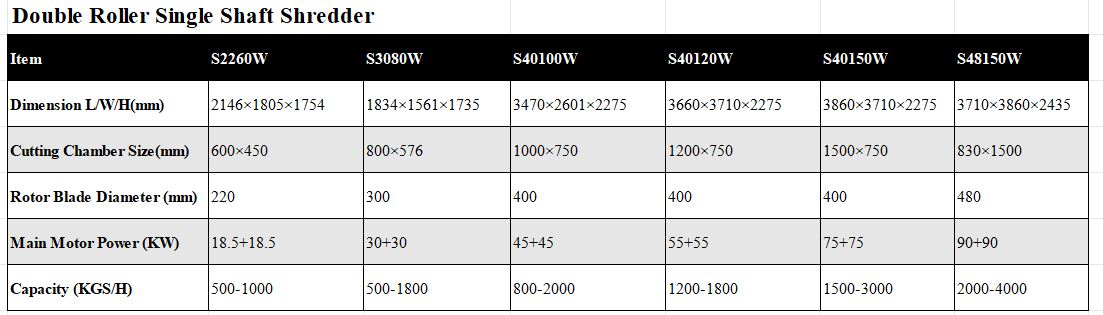

Single Shaft Shredder Specification:



1. The voltage and motor power about the power supply can be selected by the customer’s specific requirements.

2. The shredder capacity can be influenced by the material composition and output size.

The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.

Welcome to contact with us to get more details product information. We are glad to introduce you the most suitable machie, design the most reasonable proposal as your production requirements. Our task is to support our customers who are in the solid waste & refuse management industries to get a higher production efficient, improve their product quality and value so that they can get a greatest progress in the keen competition.
