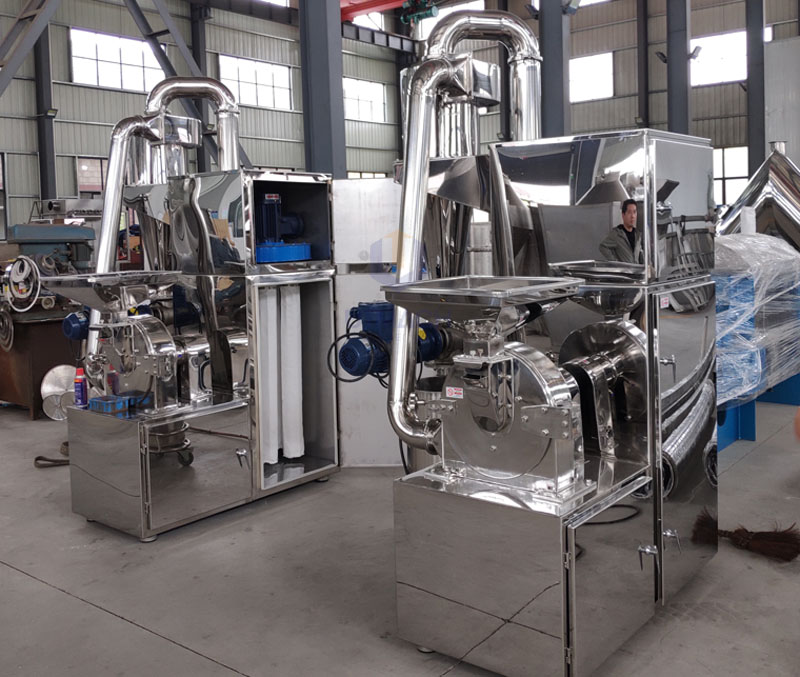

Turbine Pulverizer

Download Catalog

This turbine pulverizer mainly used in pharmaceutical, chemical, food ( such as: grinder, chilli, pepper, oil and wheat, soybean, vegetables) in the crushing process low hardness, fineness of 30-150 mesh adjusted between high output yield, fine grain size, low noise, low energy consumption, simple maintenance, and easy to install, especially for oily, viscous, heat-sensitive, fibrous materials such as low hardness crushing process.

Working Principles:

1. structure: main chassis, the door, turbine, shaft, screen, pulleys and motors and other component parts.

2. the working principles: shift turbo mill, the motor drive shaft and the turbine high-speed rotation. Ring on the turbine and screen broken grinding blocks, grinding vice, when the material from the hopper into the machine in the cavity, the material flow in the turbine rotating in the closely to friction and impact strongly on the inside of the turbine blades, and leaves the gap between the block and mill grinding again. In the crushed material, while absorbing large quantities of air turbine, which played a cooling air machine, grinding materials and the role of transmission fines. Materials depends on the fineness of grinding nature of the materials and screen size, and the materials and the air throughput.

Turbine pulverize bearing components with a special seal, can effectively prevent dust entering the bearing cavity, thus extending bearing life. Equipped with a silicon rubber gasket inside the door, no dust leakage and pollution of the operating environment.

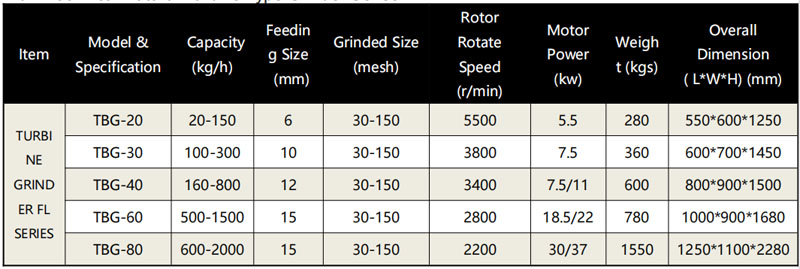

Main Technical Data of Turbine Type Grinder Series:



1. The voltage about the Product specification can be selected by the customer’s specific requirements.

2.The grinder capacity can be influenced by the material composition .

The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
