Industrial Drum Chipper

Download Catalog

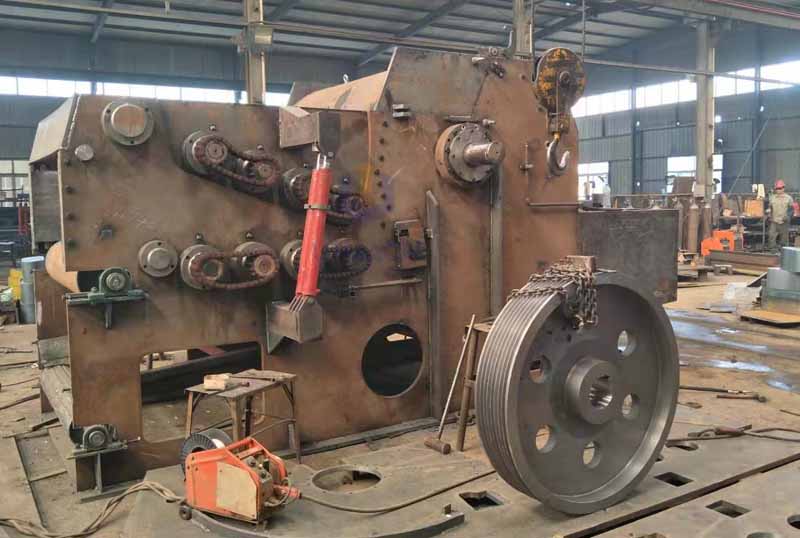

Drum Type Wood Chipper



Drum type wood chipper from United Tech is mainly used to crush big wood logs or timber wood branches, furniture waste, long bamboo into small chips. It widely used in the chipboard factory, medium/ high density fiberboard factory, straw factory, biological electric plant, wood chip factory, etc. The thickness of last chips is 3mm-5mm, length and width about 20-50mm, the knives gap can be adjusted,then outlet chips dimension will be adjusted.
Drum wood chipper contains main machine, blade rotor, feeding belt conveyor, hydraulic system, etc. the main machine body is welded with high strength steel plate. The hydraulic system is consist of oil pump, hydro cylinder, which can start up the cover for blades changes and maintenance.

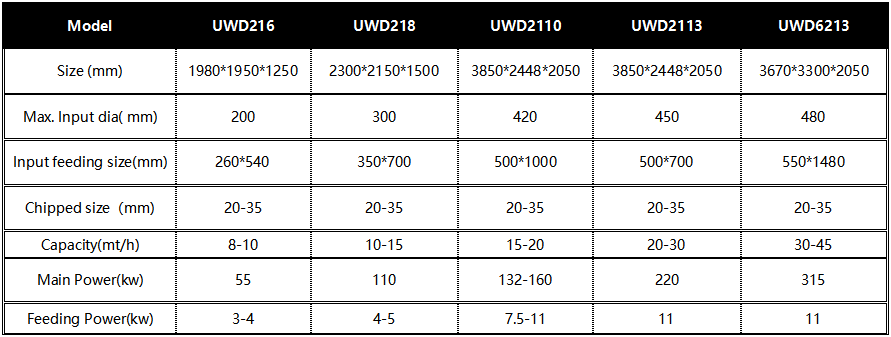

Drum Type Wood Chipper specification:


Note:

1. The voltage about the Product specification can be selected by the customer’s specific requirements.

2. The conveyor capacity can be influenced by the material composition .

The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
